Model P2
 Fluoropolymer-Lined SS Gear Pump
 PFA-Lined, 316 Stainless Steel
 Mag-Drive

Port Connections 3/4" ANSI 150# FLG
DIN20 PN16 FLG
Max Flow Rate * 2.3 GPM; 8.7 LPM
Max Differential Pressure 100 PSI; 6.9 BAR
Max Discharge Pressure ** 275 PSIG; 19.0 BARG
Max Temperature 200 °F; 93 °C
Min Temperature 32 °F; 0 °C
Max Speed 1750 RPM
NPSHR @ Max Speed 2.0 FT; 0.6 M
Lift (Dry) @ Max Speed 1 FT; 0.3 M
Weight (without motor)
  Mag, Close-Coupled

42 LBS; 19 KGS

* Typical Flow Rate @ 1750 RPM and 0 PSI (bar)
   Differential Pressure.

** Flange pressure derating is required above 100°F.

            Model P2 Mag-Drive, Close-Coupled

The Poly-Guard Pump is an excellent choice for pumping highly corrosive inorganic acids, alkalis and salts. With its tough Stainless Steel exterior and chemically-resistant Fluoropolymer interior, the Poly-Guard offers the ultimate solution for the most difficult chemical applications.

All Poly-Guard models have Mag-drive, Close-coupled & Flanged configuration, which simplifies installation and maintenance. All internal wetted components and surfaces
are non-metallic, which makes the Poly-Guard ideal for
high-purity applications.



Questions?
Contact us for your application needs


Performance Curves
P2 (pdf)

NPSHR Curve
P2 (pdf)

Dimensional Drawings
P2 Mag-Drive CC Flanged (pdf)

P2 Mag-Drive CC Flanged w/Base (pdf)

Product Manual
P-Series (pdf)

Model Coding
P-Series (pdf)

Bill of Materials
P-Series (pdf)







P2 Performance Curves (Typical)

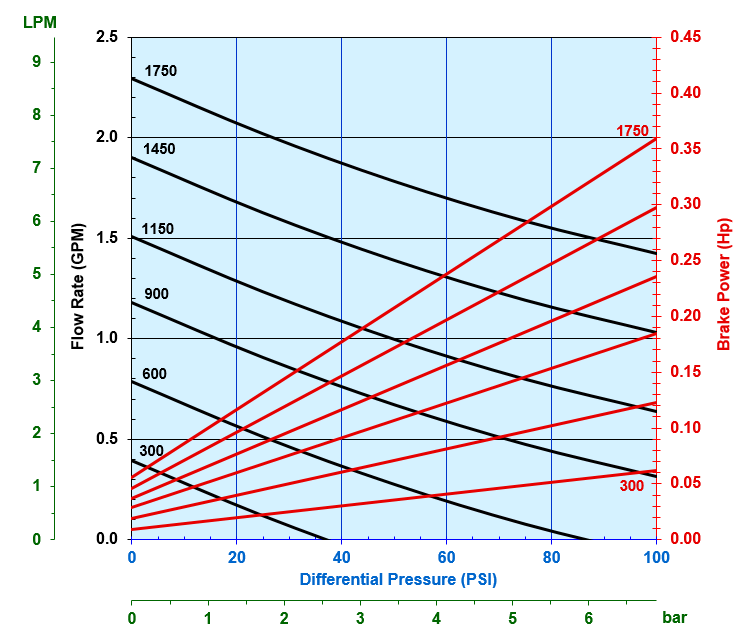

 1 cP Fluid (Water)

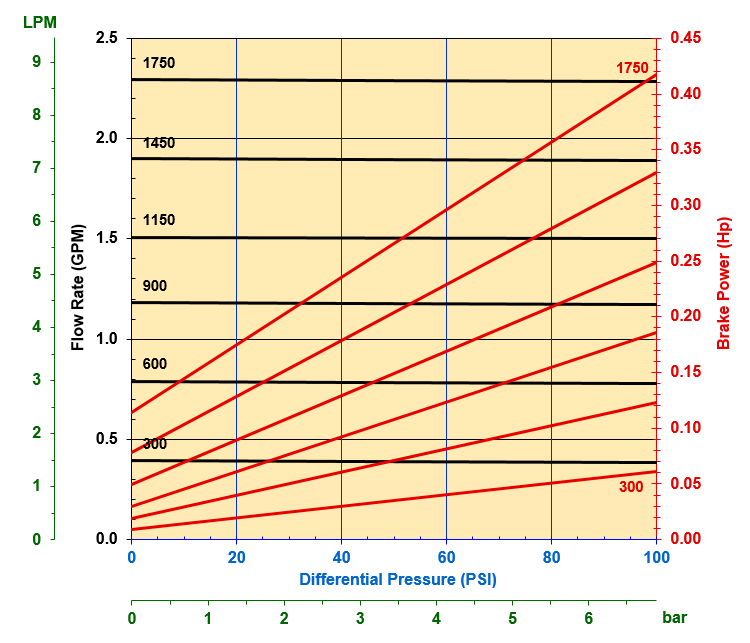

 100 cP Fluid (Oil)



P2 Dimensional Drawings



P2 Mag-Drive with Universal ANSI/DIN Flanged Ports, Close-Coupled:   inches [mm]



P2 Mag-Drive with ANSI 150# Flanged Ports, Close-Coupled:   inches [mm]



P2 Mag-Drive with DIN PN16 Flanged Ports, Close-Coupled:   inches [mm]
