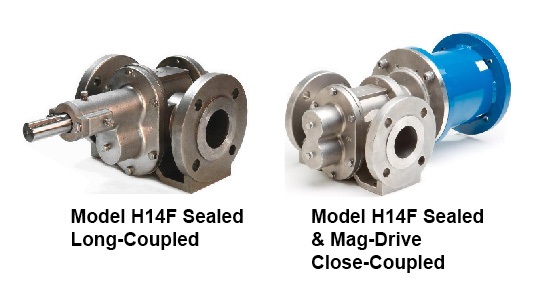

Model H14F
 Heavy Duty Industrial Gear Pump
 316 SS
 Sealed | Mag-Drive
Port Connections 2 1/2" NPT
2 1/2" FLG*
DIN65 PN16 FLG
Max Flow Rate 58.5 GPM; 221 LPM
Max Differential Pressure 225 PSI; 15.5 BAR
Max Discharge Pressure 270 PSIG; 18.6 BARG
Max Temperature 500 °F; 260 °C
Min Temperature -40 °F; -40 °C
Max Viscosity 100,000 CPS (mPas)
Max Speed 1150 RPM
NPSHR @ Max Speed 3 FT; 0.9 M
Lift (Dry) @ Max Speed 20 FT; 6.1 M
Weight (without motor)
  Sealed, Long-Coupled
  Sealed, Close-Coupled
  Mag, Close-Coupled
67 LBS; 30.5 KGS
95 LBS; 43.2 KGS
95 LBS; 43.2 KGS
Liquiflo H-Series Gear Pumps are manufactured from
316 Stainless Steel or Alloy-C, and are available in both Sealed and Mag-drive configurations. These pumps are available in a wide variety of internal materials to pump a broad range of chemicals, such as polymers, solvents, acids, caustics and other corrosive liquids.
*Standard Flanges are ANSI 150# RF.


Questions?
Contact us for your application needs


Performance Curves
H14F (pdf)

NPSHR Curve
H14F (pdf)

Dimensional Drawings
H14F Sealed LC Flanged (pdf)

H14F Sealed LC Flanged w/Base (pdf)

H14F Sealed/MC CC Flanged (pdf)

H14F Sealed/MC CC Flanged w/Base (pdf)


Product Manuals
H14F Sealed LC(pdf)

H14F Sealed CC(pdf)

H14F Mag-Drive CC(pdf)

Model Coding
H-Series (pdf)

Bill of Materials
H14-Series (pdf)

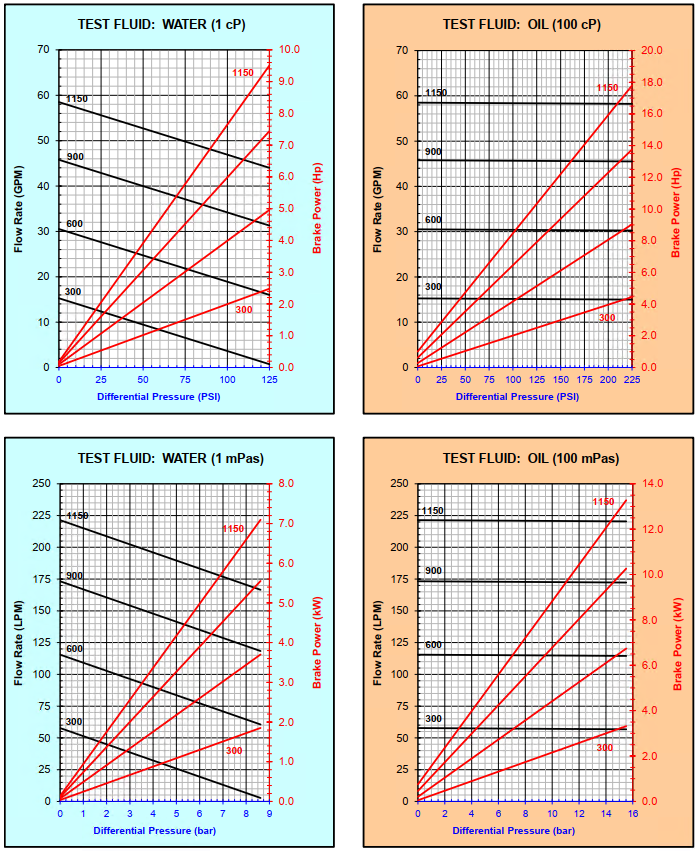

H14F Performance Curves (Typical)




H14F Dimensional Drawings

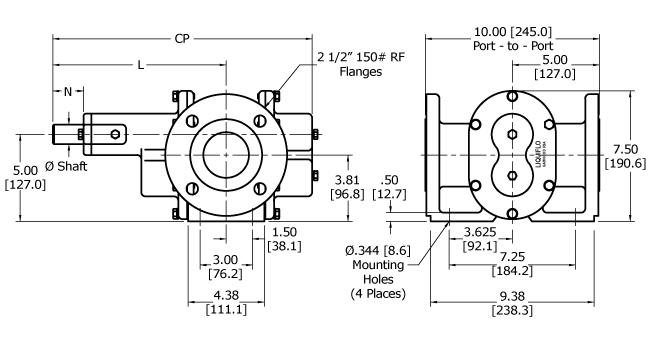

 H14F Sealed with Flanged Ports, Long-Coupled

Model H14F
Dimensional Data (inches) for available Seal Configurations
Dimension Single Mechanical Seal
Double Mechanical Seal		 Packing
CP (1) 14.78 14.89
L 9.95 9.95
N 1.78 1.48 (2)
(1) Add .31 inches for Bearing Flush Plugs.
(2) Minimum dimension.

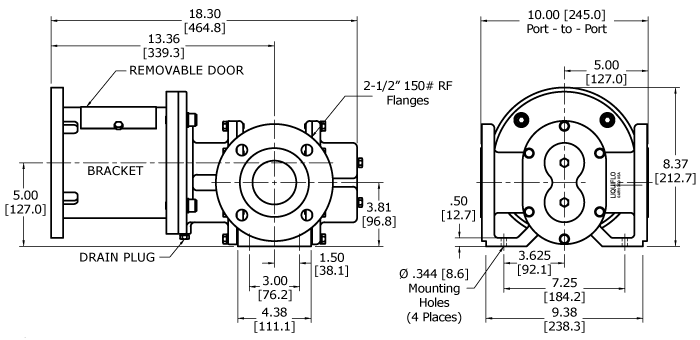

H14F Sealed & Mag-Drive with Flanged Ports, Close-Coupled
