Model 45
 Low Flow Gear Pump
 316 SS |  Alloy-C | Titanium
 Mag-Drive
Port Connections 3/8" NPT
3/8" BSPT
Max Flow Rate 3.4 GPM; 12.8 LPM
Max Differential Pressure 100 PSI; 6.9 BAR
Max Discharge Pressure 300 PSIG; 20.7 BARG
Max Viscosity * 6,600 CPS (mPas)
Max Temperature 500 °F; 260 °C
Min Temperature -40 °F; -40 °C
Max Speed 1750 RPM
NPSHR @ Max Speed 2.0 FT; 0.6 M
Lift (Dry) @ Max Speed 4.0 FT; 1.2 M
Weight (without motor)
  Mag, Close-Coupled
13 LBS; 6 KGS
Liquiflo 4-Series Gear Pumps are manufactured from
316 Stainless Steel, Alloy-C or Titanium and are available in Mag-drive configuration. The 4-Series Gear Pumps were designed for OEM applications such as chemical feed systems. These pumps offer a large selection of materials to cover a wide variety of chemical processing applications. A unique feature of the 4-Series pump is its parallel port connections located on the front of the pump.
* Specified at 300 RPM / 50 PSI ΔP / 77 °F.



Questions?
Contact us for your application needs


Performance Curves
45 (pdf)

NPSHR Curve
45 (pdf)

Dimensional Drawing
4-Series (pdf)

Product Manual
4-Series (pdf)

Model Coding
4-Series (pdf)

Bill of Materials
4-Series (pdf)

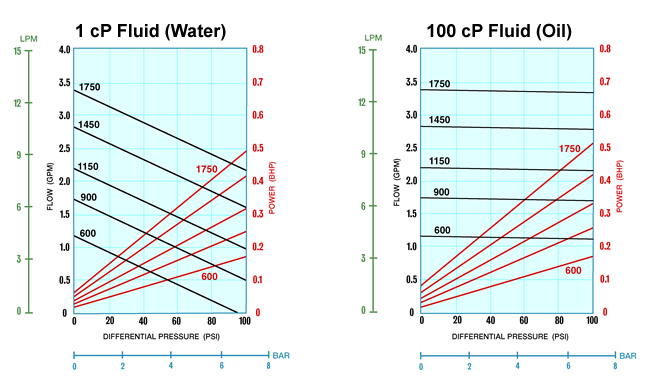

45 Performance Curves (Typical)




45 Dimensional Drawing


Model 45
DIMENSIONAL DATA - inches [mm]
Motor Frame
CP
HD
HO
HV
X
2X
IEC 71 - B14 Face
6.43 [163]
2.80 [71.1]
5.40 [137]
3.30 [83.8]
.75 [19]
1.50 [38.1]
NEMA 48C
6.80 [173]
3.00 [76.2]
5.60 [142]
3.50 [88.9]
NEMA 56C & 56HC *
7.17 [182]
3.50 [88.9]
6.10 [155]
4.00 [102]
Port Connections
P (NPT)
P (BSPT)
3/8"
3/8"

* "CP" dimension for NEMA 56C & 56HC motors with legacy blue bracket includes .375 [9.5] thick
   adapter plate (not shown).  New pumps have 304 SS bracket and adapter plate is not required.
